- Built-in Microprocessor – Standard software included for programming a comprehensive set of patterns used in punching, nibbling, and notching operations.
- Diagnostic System – Extensive diagnostic system indicates programming errors and pinpoints machine and control malfunctions.
- Punch Strip Sensor – Automatically halts machine operation if tool does not strip.
- Automatic Repositioning – Heavy duty work holders secure material during repositioning.
- Hydraulic Clutch Brake System.
- Metric or inch dimensional programmable.
- Precision ground re-circulating ball leads screws for X and Y Axis.
- Crash proof clamp sensors.
- Hardened and ground turret index pins and bushings.
- Safety interlocks and overrun protectors with all step control prevent accidents.
- 58 Station Turret for thick tooling (2 Auto Index Stations).
- Fanuc 6M Control with CRT screen and keyboard unit with memory functions and editing at control feature.
- All turret bores re-sleeved.
Features and Specs

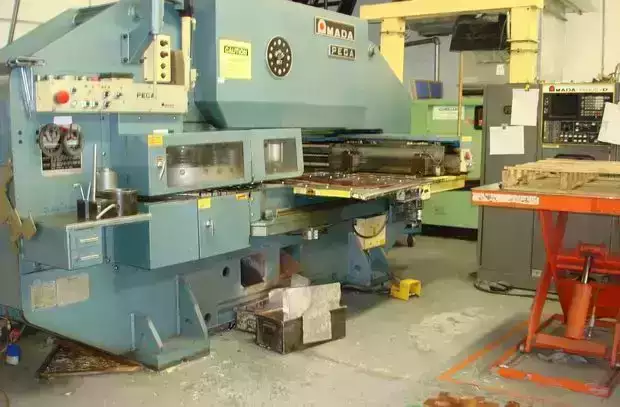

| Manufacturer | Amada |
| Model | Pega 344 |
| Year | 1987 |
| Condition | Excellent |
| Location | Bensenville, IL |
| Capacity | 33 Ton |
| Max Sheet Size | 40" x 40" |
| Max Sheet Thickness | 1/4" M.S. |
| Axis Speed | 2000 IPM |
| Hit Speed 1" Gap | 220 |
| Nibbling Hits per Minute | 350 |
| Tooling Type | Thick Turret |
| Turret Rotation | 30 RPM |
| Tool Stations | 58 |
| Auto Index Stations | 2 |
| Machine Weight | 20,000 LBS |
| CNC Manufacturer | Fanuc |
| CNC Model | 6-MB |
| Programming Modes | Absolute/Incremental |
| Programming Increment | .001" |
| Axis and Turret Drives | DC Servo Motors |
| Main Motor | 5 HP 220/3/60 Volts |
| Max Punch Diameter | 4.5 |
